I just developed a roll of film from my converted Holga 120 camera and found this shot which is just before this sculpture got moved into the house behind. It was originally part of an exhibition of Architectural style in the City Gallery on Ian Athfield.
Some shots of it in its original position are HERE. The black stuff in the bottom of the frame is felt from the edge of the film canister and was in every shot… Something to look for in the future when loading film 🙂
Holga 120 Camera converted to 35mm Panoramic (see how to do HERE), Ilford Delta 100 ISO Film (Expired), CanoScan 9000F Scanner.
Sorry have been a bit slack putting up posts of late… Youngest daughter is in “constant stream of talking” mode which makes it a bit hard to concentrate for longer than more than 3 seconds (she has interrupted 3 times just in this sentence).
This combined with 7 rolls of film sitting round waiting to be developed means I having been getting on with things as much as I probably should…
Anyhow here goes some more shots from the Holga Pano camera I converted 🙂 Enjoy.
A couple of Holga Panos from a few weeks ago when I went out to Fort Opau, an old WW2 gun emplacement.
Holga 120 Camera with Custom 35mm Pano Adaptor, Ilford Delta 100 ISO Film, CanoScan 9000F Scanner.
Another test shot from my converted Holga… The frame goes all the way to the edge of the film but my scanner wouldn’t let me scan with the right exposure so I had to use the 35mm scanner adaptor which didn’t give the sprocket holes 😦
I really need to make that scanner mask…
The other day I found The front of a Holga 120 camera whilst roaming the city. It had obviously been outside for a while and the battery contacts for the flash were missing but it still seemed to be in pretty good working order, just missing the back.
I had always wanted to convert one of these into a 35mm Panoramic camera and even though you can buy adaptors that will do this, without the sprocket holes, I wanted to make it go all the way to the edge of the film so that the sprocket holes were in the image.
The only adaptor I could get was a standard 35mm one which just had a 36mmx24mm cut out. Below is how I adapted the adaptor 🙂
Shot from the camera after it had been converted.

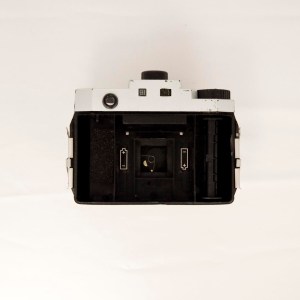

This was the part that I found with no back and the flash not working
It was missing the back, which made it pretty unusable.

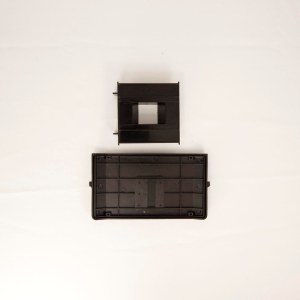

This is the 35mm adaptor I bought which had a back and a film holding plate.

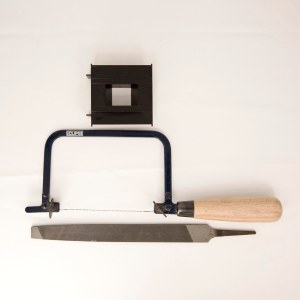

The only 2 tools required for the conversion… A flat file and a saw (mine had a jewellers blade which lets you cut 360 degrees rather than just straight)
After it had been cut out and the plate filed smooth.

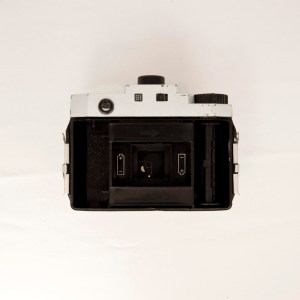

The adaptor plate in the camera.

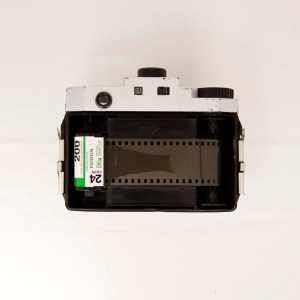

Film loaded and ready to go.
Lots of insulation tape.

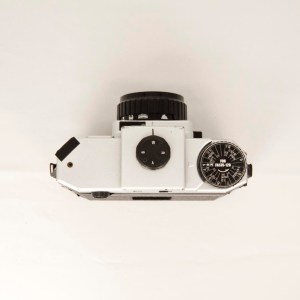

The 35mm adaptor came with a sticker that you put on the frame advance knob. I advance the film 2 frames instead of 1 for each shot.
This is why I ended up using so much insulation tape on the back of the camera. Some people like this effect but I would rather not have it 🙂
End result… I scanned it on my CanoScan 9000F Scanner which scans 120 film by just laying it on the scanner bed… Im going to make a custom scanner mask to hold the film flat sometime in the future 🙂
Another test roll through the Holga I found and adapted into a 35mm pano camera… I’m liking how these are looking… Next might have to try colour negative…
A couple of weeks ago Fergus found the front half of a Holga while we were doing a bit of urban exploring, He gave it to me and I decided to custom it using a 35mm adaptor. The adaptor I bought was only for single frame 35mm so I cut it out so that it would be panoramic all the way to the edge of the film.
This is the first roll I put through it which was 7 years expired… I still need to make a custom scanning mask so the film doesn’t curl up at the ends…
